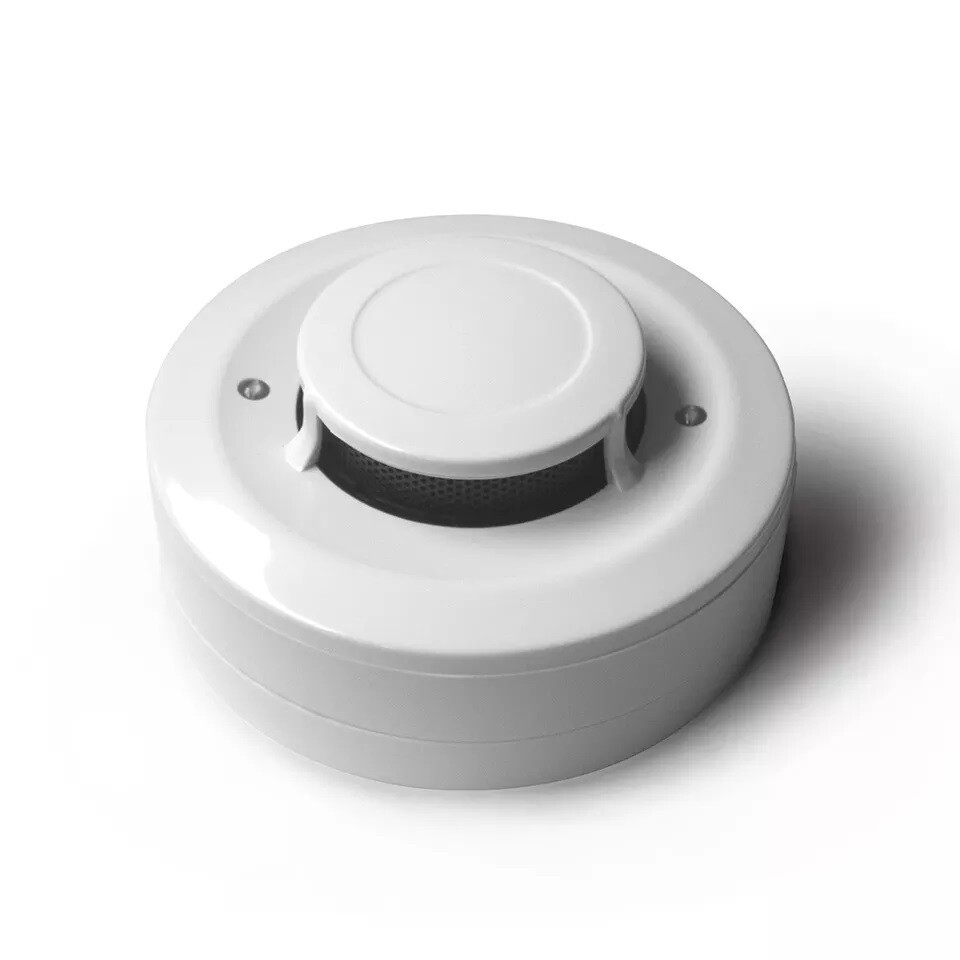

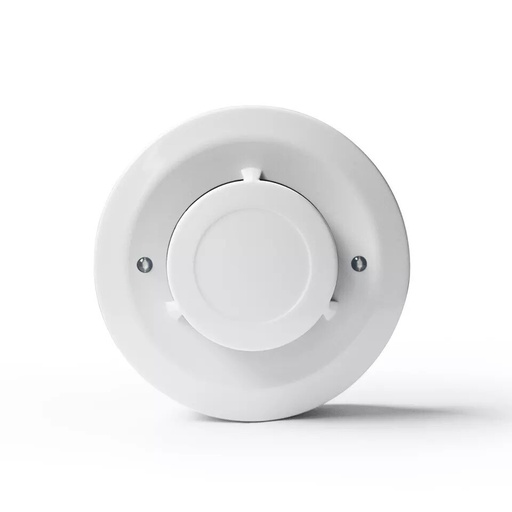

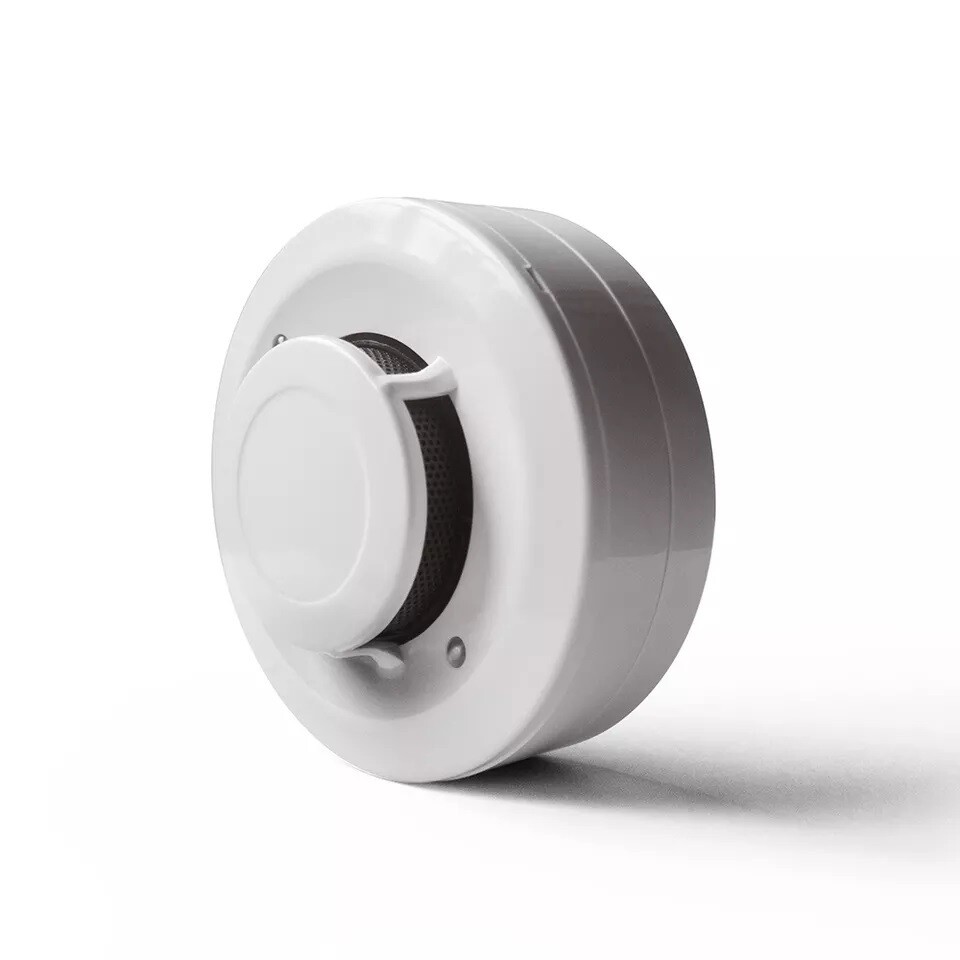

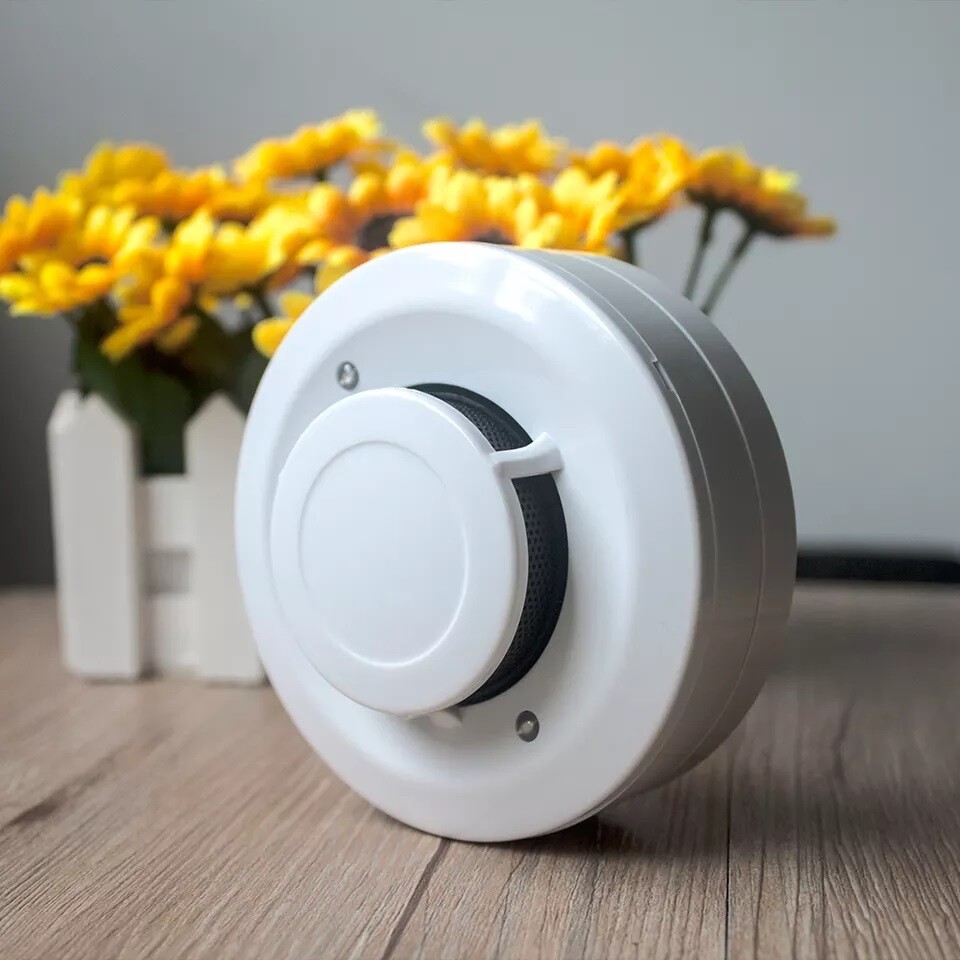

[FD11] Fire Alarm Smoke Detector (3-Wire)
Main Features
• Optical smoke chamber with high stability
• Network by current, N.O/N.C optional
• Adopted CMOS with low power consumption
• High adaptability to the ambient, with dustproof, moisture proof,
anti-white light, and high EMI immunity function
• DC12-35V input voltage
• Orientation differences: Mmax: Mmin<1.6
• Highlight dual color LED indication
• Anti-tamper switch

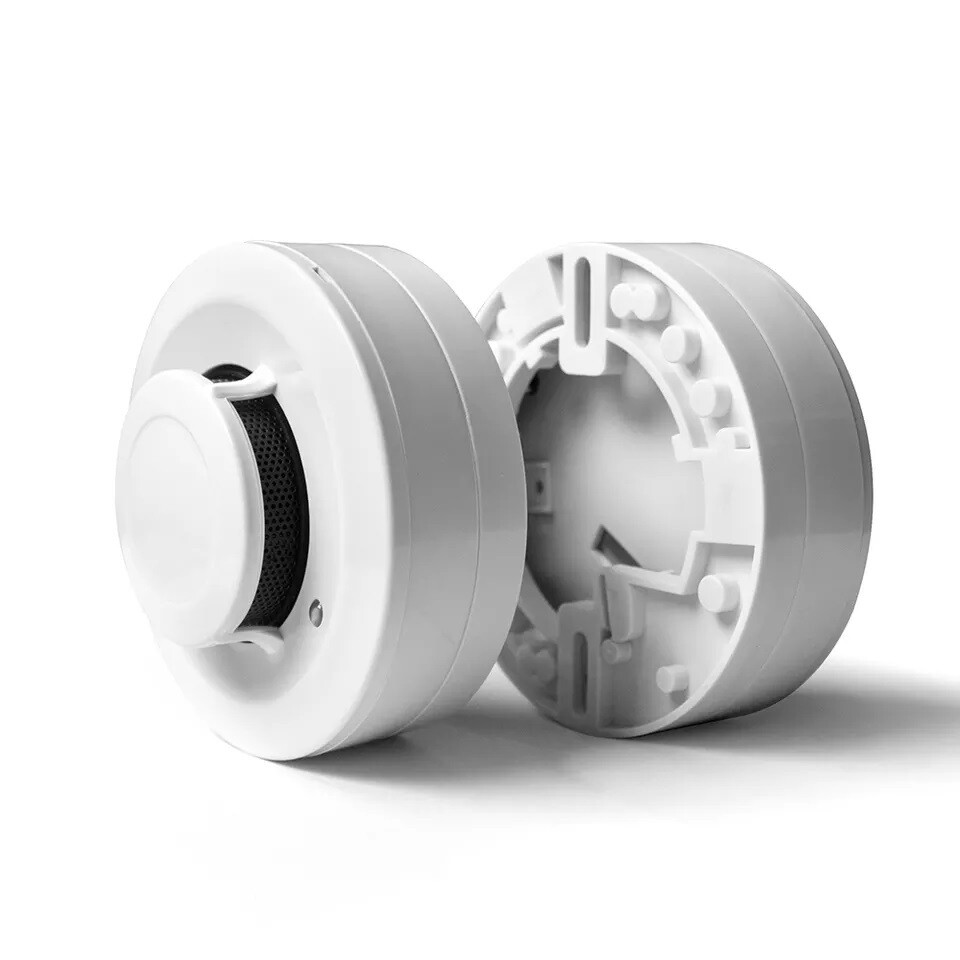

• Unique bracket design, easy installation
Technical Specifications
| Input Voltage | DC 12-35V |
| Static Current | 15-25uA (12-32V) |
| Alarm Current | 15-25mA (12-32V) |
| Operating Humidity | 10%-95% RH (Non coagulating) |
| Operating Temperature | -10°C- +55°C |
| Alarm Reset | Auto reset (power off reset, ≤0.5s optional) |
| LED Indication | Detecting: Green LED flash Alarm: Red LED ON |
| Detecting Sensitivity | m=0.5dBm-1 |
| Wiring Mode | 3-wire |
| Installation | Ceiling mounted |
| Detecting Area | 60m²(with 4 meter height) |
| Dimension | Φ100*45mm |
